Overview of product foundation

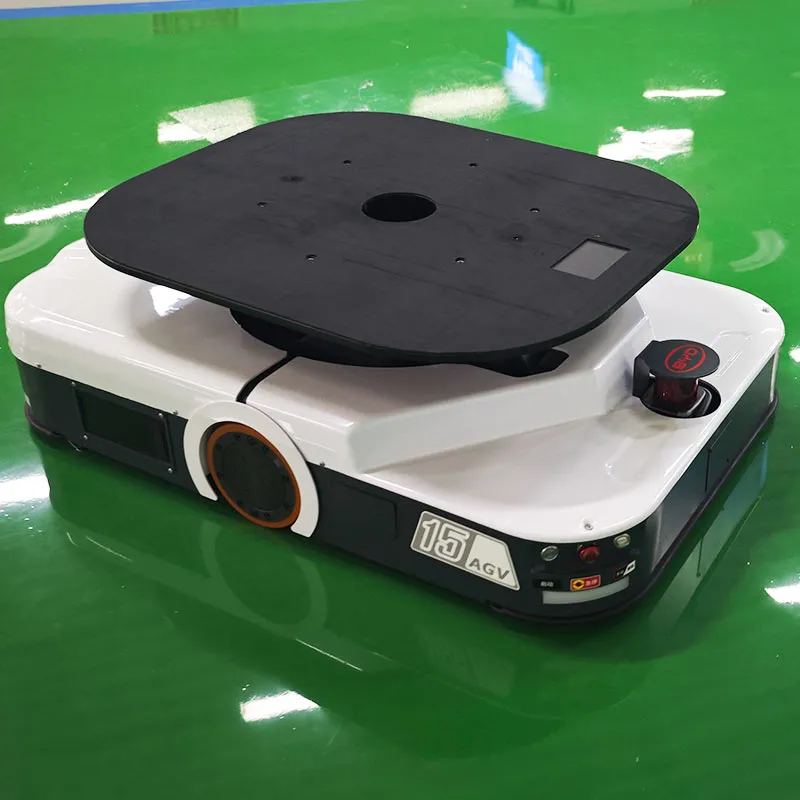

The AF06D latent jacking AGV is produced by BYD and is a miniature fully automatic latent handling robot with a rated load of 0.6 tons. The whole machine adopts a thin and low fuselage design, supports the rotation of the body in situ, and is equipped with an automatic guidance control system. It can dive into the bottom of small tooling and material racks to complete the jacking conveyance. It is suitable for ultra-narrow channels and precision station-intensive workshops, and independently completes the circulation and transfer of light and small materials to optimize the logistics flow of the production line.

Core hardware parameters

III. Standard matching configuration

Power battery: 48 V/27 Ah lithium iron phosphate battery

BYD miniaturized lithium iron phosphate power battery, light and thin, suitable for miniature fuselage, stable power supply output, suitable for short-distance production line, high-frequency small material transfer; lithium battery safety properties are good, suitable for 3C, medical apparatus, precision electronics and other clean indoor working conditions.

Charging package: 48 V/50 A charging cabinet

Special adaptable charging equipment, matching micro AGV battery specifications, supplementary efficiency adapts to the working rhythm of light equipment, reducing the production time occupied by downtime charging.

360 multiple safety protection: contact + non-contact dual collision avoidance device

Equipment around the body type safety detection, long-distance infrared induction warning with physical buffer anti-collision structure, narrow station driving can be timely identification of personnel, tooling, equipment obstacles, reduce precision material collision loss.

Sound and light safety prompt components: warning light, voice announcer

Equipment jacking, driving, steering, failure, charging status synchronous lighting and voice dual reminders, the staff in the small workshop with dense stations can quickly identify the operation dynamics of the equipment and reduce the safety hazards of human-machine interaction.

IV. Product application advantages

Ultra-light and ultra-thin body, suitable for ultra-narrow production line channels

The whole machine weighs only 200 kg, the fuselage is low in height, and with a small turning radius of 525 mm, the narrow aisle of the assembly line, a small laboratory, and a compact storage channel can be passed smoothly.

In-situ rotation function saves space effectively

Support the car body 360 to turn in place, without the need to reserve a wide turning area, and the old small factory can deploy automated logistics without the need to modify the channel, making full use of limited production space.

Latent jacking structure, suitable for a variety of light tooling vehicles

It can dive into the small material box and automatically lift the load material at the bottom of the tooling fixture, eliminating the need for manual hanging of goods, simplifying the operation steps of loading and unloading small materials, and reducing manual repeated handling.

Fully automatic unmanned guidance, reducing manpower investment in small-scale transshipment

Equipped with a mature automatic guidance system, it can independently complete multi-station cycle feeding and work in progress, reduce the manpower consumption of manual push tooling trolley, and improve the overall material flow efficiency of the workshop.

Multiple safety protections contribute to the production of precision components

360 double anti-collision with sound and light warning, active avoidance in small spaces, reducing collision damage to precision components and tooling fixtures, and contributing to the continuous and stable operation of precision production lines.

Applicable scenarios

It is suitable for indoor scenes such as 3C digital assembly workshop, precision electronic processing plant, medical apparatus production line, laboratory material transfer, small light industry assembly line, dust-free clean workshop, etc.
