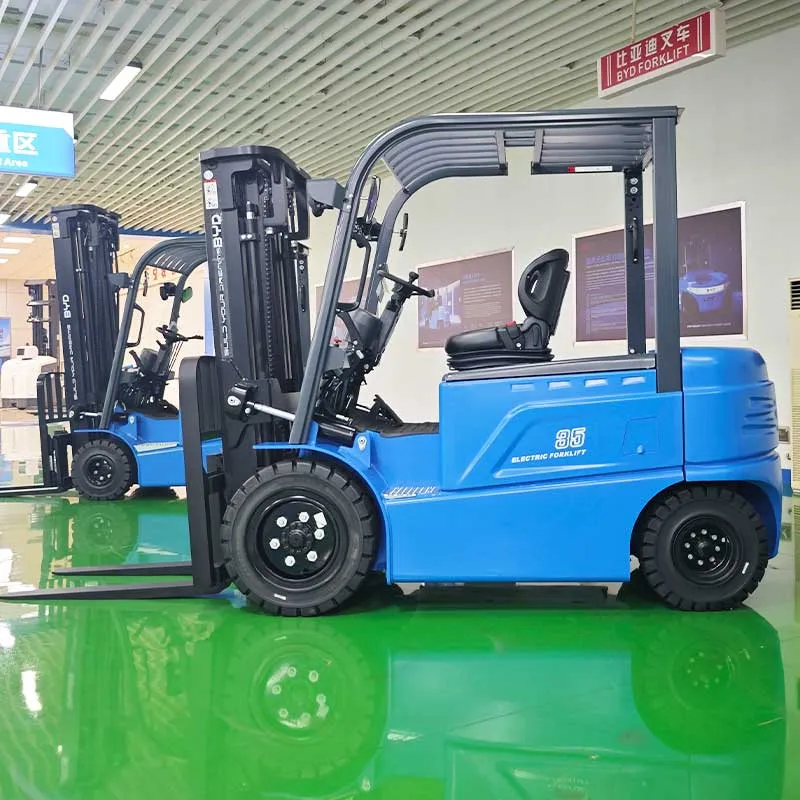

EL Pro30MAX is a 3-ton ride-on lithium-ion balance forklift, relying on BYD's self-developed lithium iron phosphate power battery and AC electronic control technology, combined with extended wheelbase, strengthened frame and door frame structure, taking into account heavy-duty stability, power output efficiency and operation comfort. It is suitable for medium and high-strength material handling and stacking scenarios such as warehousing and logistics, heavy manufacturing, building materials transportation, and port transshipment.

Core specifications

• Rated lifting capacity: 3000 kg (3 tons), load center distance 500 mm


• Body dimensions: total length 3870 mm (excluding fork 2795 mm), total width 1270 mm, wheelbase 1770 mm, front overhang 480 mm


• Door frame performance: closed height 2125 mm, standard lifting height 3000 mm, lifting height up to 4115 mm, free lifting height 130 mm


• Ground clearance: 120 mm at the gantry, 140 mm at the frame, good passability


• Channel and turning: suitable for 1000 1200 mm horizontal tray channel width 4165 mm; 800 1200 mm vertical tray channel width 4365 mm; turning radius 2480 mm, inward turning radius 645 mm


• Fork configuration: size 45/122/1070 mm, fork rack width 1100 mm, in line with ISO2328 standard (3A specification)


• Vehicle weight: total weight including battery 4510 kg; full load axle load 6500 kg/1010 kg, no load axle load 1840 kg/2670 kg


• Tire configuration: solid tire, front wheel 28 9-15, rear wheel 6.5-10, wear-resistant and durable, suitable for a variety of working conditions


Power and operating performance

• Power system: Equipped with an 80 V/210 Ah lithium iron phosphate battery, the battery weighs 154 kg and has a size of 700/500/505 mm; it is matched with AC AC electronic control, and the power output is stable and the energy efficiency ratio is high.


• Motor configuration: drive motor 20.5 kW, lifting motor 26 kW, sufficient power reserve to meet the needs of heavy-duty operations.


• Driving speed: full load/no load of 18 km/h, efficient commuting, improve operating efficiency.


• Lifting speed: full load lift 420 mm/s, no load 450 mm/s; full load drop 550 mm/s, no load 450 mm/s, smooth operation, saving working time.


• Traction and climbing: full load rated traction 19000 N, no load 10500 N; full load climbing capacity 18%, no load 20%, can handle ramp and platform operations.


• Energy consumption performance: lithium battery drive, no exhaust gas generation during operation, low noise, lower energy consumption cost than internal combustion forklift, suitable for multi-shift continuous operation.


III. Safety and structural configuration

• Braking system: Hydraulic braking, sensitive braking response, suitable for high-frequency start-stop conditions, helps to improve job safety.


• Hydraulic system: working pressure 135 - 150 bar, stable system operation, accurate lifting and steering operation.


• Safety protection: equipped with a high-strength roof guard (height 2240 mm) to provide reliable protection; the noise at the driver ≤ 75 dB (A) to optimize the working environment.


• Frame gantry: extended wheelbase design to improve heavy-duty stability; made of high-strength materials, after intensive testing, stable load, suitable for complex working conditions.


IV. Operation experience and application scenarios

• Comfortable design: The seat is 1260mm above the ground, with spacious operating space and reasonable layout. It is not easy to fatigue during long-term operation.


• Convenient control: light steering, clear gear, low difficulty to get started, suitable for high-frequency operation rhythm.


• Applicable scenarios: suitable for heavy warehousing, logistics transfer centers, building materials markets, port terminals, automobile manufacturing and other indoor and outdoor conventional environments, to meet the needs of 3-ton cargo handling, stacking, loading and unloading.
