Overview of product foundation

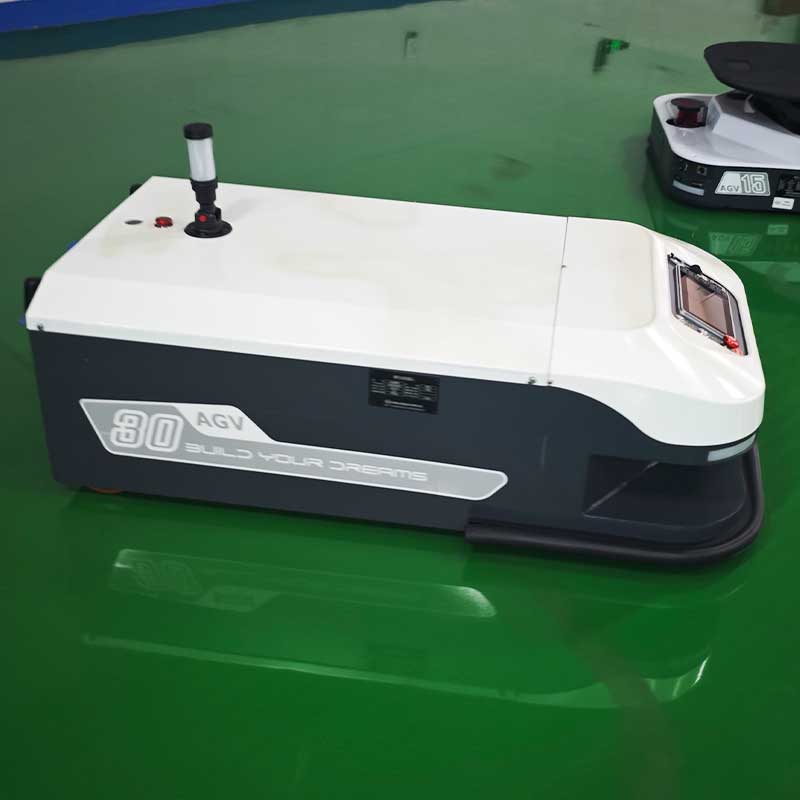

The AQ30MPW-01 latent traction AGV is produced by BYD and is a fully automatic latent material handling equipment with a rated traction of 3 tons. The equipment is equipped with an automatic lifting and lowering traction pin, adopts a floor-charging intelligent charging solution, and is matched with a mature automatic guidance system. It can sneak into the bottom of the tooling trailer to complete the trailer transfer. It can quickly replenish power by using the cargo loading and unloading gap, which helps the equipment to continue to operate and optimize the material transportation process in the workshop.

Core hardware parameters

III. Standard matching configuration

Power battery: 24 V/210 Ah lithium iron phosphate battery

BYD lithium iron phosphate power battery, stable power supply output, suitable for multi-shift continuous material transfer in factories, safe and stable lithium battery material, suitable for a variety of indoor workshops and storage conditions.

Charging package: 24 V/200 A charging cabinet + ground automatic charging solution

The matching intelligent charging mode can be quickly charged in the neutral gear of workers loading and unloading goods, eliminating the need for a separate shutdown to wait for replenishment, reducing the interruption time of logistics operations.

Safety protection: contact + non-contact double collision avoidance device

Dual safety detection structure, long-distance sensing warning with physical buffer protection, active identification of personnel, shelves, tooling vehicle obstacles during driving, reducing the risk of collision and collision.

Sound and light prompt components: warning light, voice announcer

Equipment running, lifting traction pin, charging, fault status synchronous lighting and voice dual reminder, field staff can clearly grasp the dynamic operation of equipment, reduce human-machine interaction safety hazards.

IV. Product application advantages

Latent design for standard tooling trailers

The fuselage can be submerged into the bottom of the material trailer, and the automatic lifting traction pin completes docking and decoupling, eliminating the need for manual attachment of the trailer, simplifying the operation steps of material transfer.

Ground charging intelligent fast charging, making full use of the work gap

Relying on the automatic charging device on the ground, power is replenished synchronously during the loading and unloading period to maintain sufficient power for the whole vehicle and reduce the production time occupied by centralized charging.

Small turning radius, flexible passage

The turning radius of the whole machine is only 1120 mm, the fuselage is compact and compact, and the narrow aisle of the assembly line and the dense storage channel can be turned flexibly, which is suitable for the compact factory layout.

Fully automatic guided operation, reducing manual operation pressure

Equipped with an automatic guidance control system, it can independently complete multi-point cycle feeding and material turnover in the factory area, reducing the manpower input of manual push trailers and improving the efficiency of workshop circulation.

Multiple safety protections contribute to the stable operation of the production line

360 dual collision avoidance with sound and light warning mechanism, active risk avoidance during driving, reducing production stagnation caused by material and equipment damage, and maintaining orderly operation in the workshop.

Applicable scenarios

It is suitable for automotive parts assembly lines, electronic assembly workshops, home appliance manufacturing plants, warehousing material circulation distribution, light industry processing plants, and other indoor automated logistics scenarios that require bulk transfer of materials by tooling trailers and narrow passages.
