Product Overview

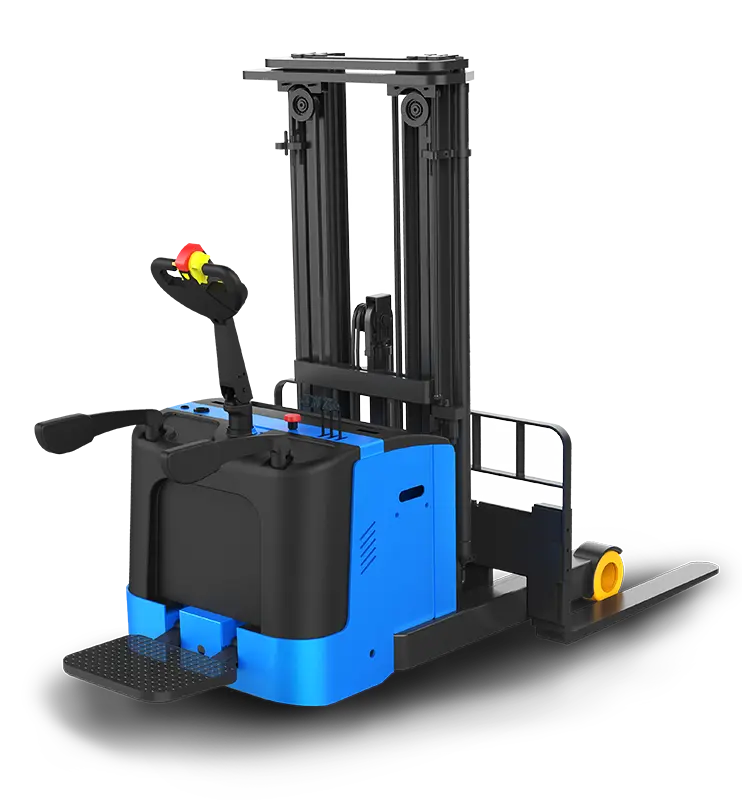

BYD 2R14PS station-driven forward lithium-ion forklift, suitable for small and medium-sized cargo narrow channel high-level stacking transshipment scenarios, relying on BYD's self-developed lithium battery technology, taking into account moderate load, compact body and flexible steering characteristics, suitable for medium-sized small parts warehousing, electronic parts warehouses, supermarket logistics warehouses and other indoor operation scenarios, the vehicle adopts a standardized and compliant structure design, suitable for medium-load, limited channel space storage conditions.
II. Core parameters
| parameter category | parameter name | unit | 2R14PS |
| overview | manufacturer | Home | |
| Model | 2R14PS | ||
| drive | electric | ||
| Manipulation form | Stand-by | ||
| load capacity | kg | 1400 | |
| load center distance | mm | 500 | |
| Hanging distance, gantry protruding (without external shifter) | mm | 195 | |
| wheelbase | mm | 1275 | |
| weight | Gross weight (including battery) | kg | 2325 |
| Shaft load, gantry unloaded extension, drive side/load-bearing side | kg | 1285/1040 | |
| Shaft load, gantry no-load retraction, drive side/load-bearing side | kg | 1540/1785 | |
| Shaft load, gantry fully loaded, drive side/load-bearing side | kg | 515/3210 | |
| Shaft load, gantry retracted at full load, drive side/load side | kg | 1330/2395 | |
| tire | Wheel category | polyurethane | |
| Drive wheel size | mm | Φ320X130 | |
| Bearing wheel size | mm | Φ254X114 | |
| Caster size | mm | Φ150X80 | |
| Number of front/rear wheels, x = drive wheels | 1x+1/2 | ||
| front track | mm | 975 | |
| rear track | mm | 650 | |
| size | Forward/Back Angle | you | 3-5 |
| Doorframe height, fall back | mm | 2000 | |
| Free lift | mm | 100 | |
| lift | mm | 3000 | |
| Door height, lifting | mm | 4015 | |
| Ceiling height | mm | 2250 | |
| outrigger height | mm | 275 | |
| total length | mm | 2110 | |
| Length of the front face of the fork | mm | 1190 | |
| overall width | mm | 1090 | |
| Fork size | mm | 35/100/920 | |
| ISO 2328 compliant fork racks, frames/forms A, B | 2A | ||
| Fork rack width | mm | 730 | |
| Fork outer width, lower/upper limit | mm | 230/650 | |
| Medial width of outriggers | mm | 755 | |
| gantry forward distance | mm | 510 | |
| Ground clearance of gantry | mm | 80 | |
| Wheelbase Center Ground Clearance | mm | 80 | |
| Right-angle stacking channel width, pallet 1000X1200 (1000 placed along the fork), without external transducer | mm | 2639 | |
| Right-angle stacking channel width, pallet 800X1200 (1200 placed along the fork), without external transducer | mm | 2701 | |
| lower turning radius | mm | 1525 | |
| Body length | mm | 1645 | |
| performance | Driving speed (full load/no load) | Km/h | 10.5/10.5 |
| Lifting speed (full load/no load) | mm/s | 320/500 | |
| Falling speed (full load/no load) | mm/s | 500/500 | |
| Maximum climbing capacity (full load/no load) | % | 10-15 | |
| Braking form | Electromagnetic/hydraulic | ||
| drive | Drive motor, rated power | kW | 5.8 |
| Lifting motor, rated power | kw | 8.8 | |
| Steering motor, rated power | kw | 0.75 | |
| Battery capacity | V/Ah | 48/200 | |
| Battery weight | kg | 110 | |
| Battery type | lithium iron phosphate | ||
| Electronic control type | AC | ||
| hydraulic | Hydraulic system working pressure | bar | |
| Noise from the driver | dB (A) | ≤75 |
III. Product core advantages
1. BYD original lithium battery, suitable for clean room operation
Equipped with BYD lithium iron phosphate battery, equipped with stable thermal management system, support fast charging, charging and use, no memory effect; battery cycle life can meet the needs of long-term high-frequency operation, compared with traditional lead-acid batteries, can reduce battery replacement frequency, effectively reduce the risk of acid leakage, suitable for electronics, food, medicine and other production workshops that require cleanliness. 48 V low-voltage power structure, perfect power safety design, suitable for closed indoor storage environment.
2. Compact forward structure, flexible operation in narrow warehouse
The forward-moving telescopic door frame design, the fork teeth can be retractable back and forth, and the body does not need to be close to the shelf during high-level stacking operations; with a turning radius of 1525 mm, it is suitable for narrow channel warehouses of 1.8 m and above, and more shelf positions can be planned for the same storage area to improve the utilization rate of storage capacity. Standing operation layout, convenient on and off, suitable for high-frequency and short-distance transshipment of small and medium-sized goods.
3. Balanced counterweight body, stable operation with medium load
The vehicle weighs 2325 kg and adopts a scientific counterweight layout. Under the rated load of 1.4 tons, the lifting, driving and steering processes operate smoothly, reducing the probability of cargo slipping. The key parts of the vehicle are made of industrial-grade wear-resistant materials, and the walking wheels and bearing wheels are wear-resistant and durable, which can be adapted to long-term high-frequency driving on the warehouse floor.
4.200 Ah standard lithium battery, suitable for single-shift conventional storage
Equipped with a 200 Ah battery configuration, it can meet the needs of most enterprises for medium-load warehousing operations within 8 hours of a single shift. It is cost-friendly for procurement and daily use, and is suitable for warehousing scenarios with small pieces and medium-frequency heavy loads.
5. Moderate investment in operation and maintenance, green electric handling equipment
The pure electric power operation process has no exhaust gas generation, and the working environment of the closed warehouse is clean; the motor is equipped with an optimized energy consumption control plan, and the energy consumption control performance is good under the same working conditions, which can reduce electricity expenditure; the whole vehicle is equipped with a fault self-inspection system, and the line layout is regular. It is easy to repair and maintain later. Compared with internal combustion forklifts, there is no need to bear the cost of fuel, filter elements and other consumables, and long-term use has good comprehensive cost performance.
IV. Applicable scenarios
Small and medium-sized three-dimensional shelf warehouses, e-commerce distribution warehouses, electronic components workshops, food processing warehouses, supermarket warehousing centers, precision hardware accessories warehouses and other narrow passages, indoor small and medium-sized goods high stacking operation scenarios.
V. Parameter description
The marked parameters of this product are all standard rated working conditions test values. The actual operation life and stacking operation performance will be affected by factors such as cargo load, ground road conditions, operator habits, lifting height, etc. If you need accurate selection, you can consult a professional sales engineer in combination with the actual working conditions of the warehouse.
