First, the basic product information

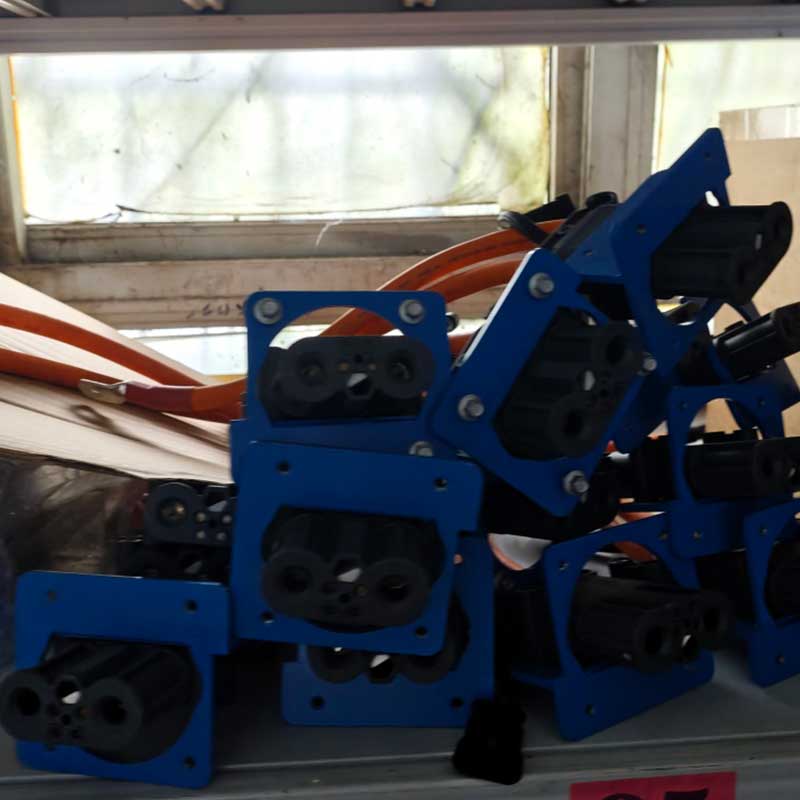

This product is the original specification of BYD lithium forklift charging interface assembly, which is the core connection component of the forklift battery system and charging equipment. It adopts the national standard universal interface specification and is specially developed for the 80V lithium battery forklift power system. It belongs to the conventional BYD forklift parts. The corresponding model can replace the original car with the same specification charging interface to meet the connection requirements of the forklift's daily power replenishment and fast charging scenarios.

II. Core Functions

1. power transmission carrier


   As a physical connection port between the charging cabinet and the forklift battery pack, it can stably carry the rated charging current of 100A/200A, and is suitable for the conventional charging and fast charging conditions of BYD's 80V lithium battery system to help power transfer smoothly during the charging process.


2. Signal interaction docking


   Built-in communication pins enable real-time signal interaction between the charging device and the forklift BMS system, complete charging handshake, power negotiation, status feedback, and cooperate with the BMS to achieve intelligent control of the entire charging process.


3. Basic security protection


   The interface is equipped with a foolproof design and an insulating structure, which can reduce the risk of false insertion and reverse connection, and at the same time block the intrusion of daily dust and splashing water, reducing the hidden dangers of short circuit and leakage during the charging process.


III. Product technical characteristics

1. factory specification adaptation


   Developed according to the original size and electrical standards of BYD forklift, the interface pins are defined and the installation holes are consistent with the original specifications, which are suitable for the installation positions of the original vehicle. It can be replaced and installed in situ under the normal working conditions of the corresponding model.


2. Durable structural design


   The interface conductive terminal is made of high-conductivity wear-resistant material, and the shell is made of high-strength engineering plastic. It is designed according to the working conditions of industrial vehicles and has strong impact resistance and anti-aging ability. It can adapt to high-frequency plugging and complex operating environments in warehousing, logistics, and manufacturing workshops.


3. National standard universal compatibility


   Adopting the national standard charging interface standard for industrial vehicles, it can be adapted to BYD's original charging cabinet of corresponding specifications and third-party charging equipment that meets the national standard, and most of the charging equipment of the same specification can be adapted.


4. Convenient layout of side decoration


   Match the original car design of the side charging port of BYD forklift, plug and unplug operation is easy, and daily power replenishment operation is convenient and efficient.


IV. Range of suitable models

It is suitable for BYD CPD20, CPD25, CPD30, CPD35 and other 80V lithium battery counterbalanced forklifts, as well as storage lithium battery forklifts with the same voltage platform. It is a commonly used vulnerable replacement part in BYD accessories. It is suitable for maintenance and replacement of charging interface wear, poor contact, shell damage and other failure scenarios.

V. Goods and after-sales instructions

• Product status: brand new original specification accessories, interface with dust protection cover, factory has been tested for on-off and insulation;


• Installation prompt: It can be replaced in situ when the power is off. It is recommended that a professional electrician complete the wiring installation;


• After-sales description: Failures caused by non-human physical damage and abnormal plugging can enjoy the agreed quality assurance service.
