First, the basic product information

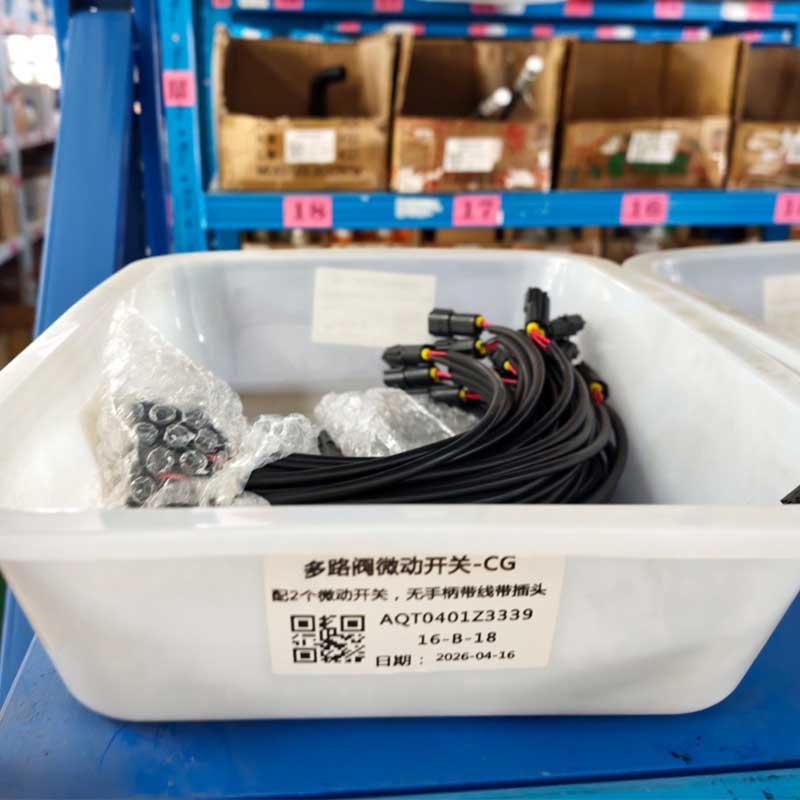

This product is a multi-way valve micro switch assembly supporting BYD lithium battery forklift. Each set contains 2 switch bodies. It adopts an integrated design without handle, with wire and plug. It belongs to the signal sensing accessories of the forklift hydraulic control system and is a conventional BYD forklift parts. The product is developed according to the original specifications and can replace the micro switch of the same specification of the original car. It is suitable for maintenance and replacement scenarios such as poor switch contact, trigger failure, and aging and damage to the wiring harness.

II. Core Functions

Hydraulic operation signal trigger

Installed inside the multi-way valve operating mechanism, triggers the on-off signal with the action of the valve stem, and transmits the hydraulic operation instruction to the vehicle control system. It is a signal feedback component with hydraulic functions such as lifting, tilting, and attachments.

Reliable feedback on operation status

The electrical signal is transmitted through the mechanical touchpoint, which can reliably feedback the operating position and working state of the valve stem, and cooperate with the control system to realize the start-stop control of the hydraulic function.

Harness integrated stable transmission

With its own prefabricated wiring harness and dedicated plug-in connector, it can directly connect to the original car line, which helps to stabilize the transmission of switch signals and reduce the hidden dangers of poor contact caused by external wiring.

III. Product technical characteristics

Original specification adaptation design

Developed according to the original electrical and installation standards of BYD forklift, the installation size, plug definition, and wire harness length are consistent with the original specifications. It can be replaced and installed in situ under the normal working conditions of the corresponding model, and generally no additional line changes are required.

Durable condition touchpoint design

The switch touchpoint is made of wear-resistant conductive material, which can adapt to the working conditions of frequent hydraulic operation of forklifts. The on-off life meets the standards of industrial electrical components, which helps to prolong the service life of components.

Protective harness structure

The wire harness is covered with wear-resistant insulating sheath, which has certain anti-oil pollution and anti-bending ability, which can adapt to the complex working environment in the hydraulic compartment of the forklift and reduce the probability of line aging and damage.

Integrated design with plug

Factory prefabricated wiring harness and plug-in connector, the connector has a foolproof alignment structure, the alignment is clear when connecting, and the installation and operation are convenient, which helps to improve the efficiency of maintenance operations.

IV. Adaptation range

It is suitable for the multi-way valve system of BYD CPD20, CPD25, CPD30, CPD35 and other series lithium-ion counterbalanced forklifts. It is a commonly used hydraulic and electrical vulnerable replacement part in BYD accessories. It is suitable for maintenance and replacement of micro switch failure scenarios such as poor contact, trigger failure, aging and damage of wiring harness, and joint oxidation.

V. Goods and after-sales instructions

• Product status: New original specification micro switch components, each set contains 2 switches with wires, which have been tested for on-off performance after leaving the factory, and the joints are packed with protective packaging;


• Installation tips: It is recommended to install it by professional maintenance personnel in the state of power failure, and confirm the alignment of the joints when plugging in to avoid forcibly plugging and unplugging damaged pins;


• After-sales description: Failures caused by non-human physical damage and abnormal installation and use can enjoy the agreed quality assurance service.
