Product Overview

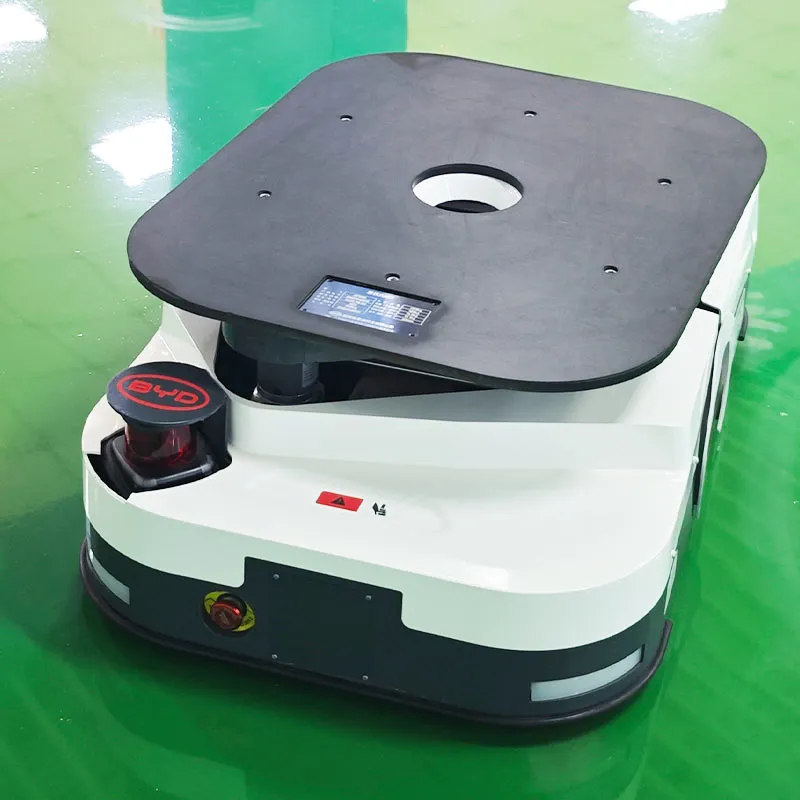

The AQ30MPW belongs to the BYD Logistics Robotics intelligent logistics robot series. It is a fully automatic traction AGV, built for automated factories and intelligent warehousing multi-trailer batch material unmanned transfer scenarios. It is equipped with a 24 V lithium battery system and is equipped with a 210 Ah lithium battery. It integrates autonomous navigation, multiple safety obstacle avoidance, and upper system docking modules. The whole machine is low and lightweight. The 1260 mm compact turning radius is suitable for narrow passages in the workshop, production line aisles, and narrow areas of cargo elevators. It can independently pull multiple groups of tooling trailers to complete unmanned operations in all aspects of batch material recycling and distribution.
core parameter
| category | parameter name | unit symbol | parameter value |
| characteristic | manufacturer | Home | |
| Model name | AQ30MPW | ||
| dynamic form | electric | ||
| mode of operation | Remote control/wire control/unmanned driving | ||
| rated traction weight | Q kg | 3000 | |
| rated traction | F N | 750 | |
| weight | wheelbase | y mm | 810 |
| Gross weight (including battery) | kg | 520 | |
| Front bearing load mass | kg | 392 | |
| Rear bearing load mass | kg | 128 | |
| tire | Tire form | polyurethane | |
| Front wheel size | mm | φ280x80 | |
| Rear wheel size | mm | φ150x48 | |
| Number of front/rear wheels, x = drive wheels | 1x/2 | ||
| front track | b10 mm | / | |
| rear track | b11 mm | 603 | |
| Basic size | Traction device height | h10 mm | 233 |
| Front/rear overhang | l5 mm | 426/190 | |
| total length | l1 mm | 1426 | |
| total width | b1/b2 mm | 784 | |
| Wheelbase Center Ground Clearance | m2 mm | 30 | |
| lower turning radius | Wa mm | 1260 | |
| performance | Driving speed, load/no load | km/h | 3.6/5.4 |
| upper limit hook traction | KN | 3 | |
| Approach angle/departure angle | a | 4/21 | |
| Climbing ability, full/no load | % | 3/5 | |
| service brake | Electromagnetic braking | ||
| electrical | Drive motor power (S2 = 60min) | kW | 1.5 |
| Battery voltage/capacity | V/Ah | 24/210 | |
| Battery weight | kg | 85 | |
| special parameters | Navigation method | Magnetic navigation/laser navigation | |
| navigation accuracy | mm | ±10 | |
| positioning accuracy | mm | ±10 | |
| Stop accuracy | mm | ±10 | |
| ability to pass the threshold | mm | 10 | |
| seam capacity | mm | 30 | |
| Safety obstacle avoidance | Front level non-contact obstacle avoidance | Yes. | |
| Contact obstacle avoidance | Yes. | ||
| warning light | Yes. | ||
| Voice warning | Yes. | ||
| other | Electronic control type | AC | |
| Noise at the driver | dB (A) | ||
| Traction connection | PIN |
Rated traction load: 3.0 T, can pull multiple material turnover trailers, tooling trolleys, automatic transfer of parts, whole batches of raw materials, complete sets of small goods;
Weight of the whole machine: 520 kg, lightweight low body, traction full trailer driving, steering condition of the body running smoothly;
Turning radius: 1260mm, suitable for compact production workshops, small smart warehouses, and freight elevators, allowing for autonomous reversing in small spaces and real-time avoidance of obstacles.
Power supply voltage: 24 V low-voltage power platform, heavy-duty traction, long-distance cycle driving power output smooth and stable;
Battery specification: 210 Ah BYD lithium battery, to meet the long-term multi-batch continuous automatic traction transfer battery life needs.
Product advantage
1.3 tons standard traction capacity, lightweight fuselage flexible passage
Rated 3 tons of traction specifications, low and compact body design, towing multiple full-load trailers, good body balance when passing on gentle slopes, suitable for automatic circulation distribution of bulk materials for multiple vehicles.
2. Fully autonomous and unmanned traction operation, suitable for digital intelligent production lines
Equipped with an autonomous navigation module, it can connect to WMS and MES warehousing and production management systems, automatically plan driving routes, and independently complete all aspects of trailer attachment, transshipment and distribution, and automatic charging, reducing manual on-site operation and duty.
3. Small turning radius, suitable for space-constrained automated venues
1260Mm compact turning size, small steering space, narrow channel production line, multi-storey warehouse freight elevator, small unmanned warehouse interior can be flexible reversing traffic, suitable for automation renovation projects with limited space.
4. BYD lithium battery system, easy operation and maintenance to reduce long-term costs
Equipped with BYD's self-developed 24 V lithium battery, with a capacity of 210 Ah, stable power output, and support for automatic charging and docking; compared with traditional lead-acid batteries, it effectively reduces the risk of electrolyte leakage, does not require frequent hydration and maintenance, and reduces daily operation and maintenance workload.
applicable scenario
Automated auto parts assembly workshop, electronic clean production plant, small intelligent storage park, medical apparatus assembly line, packaging and processing unmanned production line and other multi-trailer batch materials fully automatic traction and transfer conditions.
Product Summary
The AQ30MPW 3-ton BYD unmanned traction AGV robot is equipped with a stable 3-ton traction load, a low and lightweight fuselage, a small turning radius, and unmanned automated traction operations during driving. It is equipped with an integrated lithium battery, suitable for small and medium-sized smart factories and automated warehouses. Bulk material recycling, energy saving and environmental protection, moderate daily maintenance workload, suitable for promoting the selection of manufacturing and warehousing enterprises with less human production lines and unmanned upgrades.
