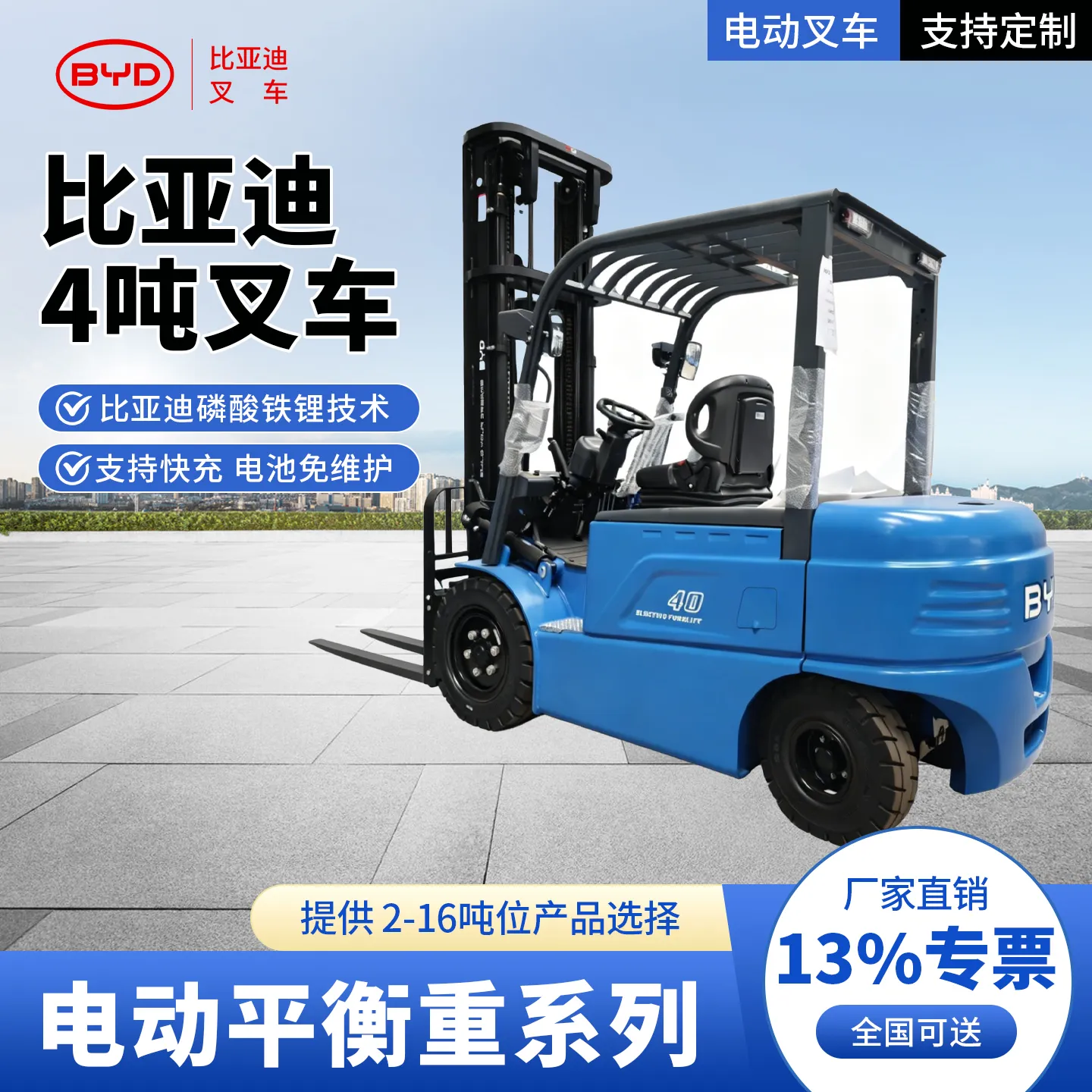

BYD forklift EL40M-PRO 4.0T electric counterweight forklift is a practical operation equipment designed for heavy cargo handling scenarios. It is intelligent, safe, reliable, and energy-efficient, and is suitable for large warehouses, manufacturing workshops, logistics hubs, and other daily operating environments.
The forklift is designed with a combination of curved surface and streamline, and the overall line is strong and powerful, with both industrial beauty and recognition. The power system is optimized, and the motor and electronic control work together to cover a wide range of efficient working conditions, which can effectively reduce energy consumption. The power performance is stable, with a full load climbing degree of up to 15%. With a long wheelbase design, the driving stability is good, and it can cope with scenarios such as ramps and complex road conditions in the factory area. The battery has a long cycle life, which can reduce the frequency of replacement and reduce additional procurement and maintenance costs. With a plug-in charging method, it helps to slow down battery attenuation, prolong battery life, and has good long-term economic use.
The vehicle is equipped with an LED lighting system as standard, with sufficient brightness and high protection level, which can meet the lighting requirements of dim environments and night operations, and improve work safety. The vehicle is smoothly controlled and can travel at a full load speed of 16 km/h, taking into account work efficiency and driving stability, and helping to improve storage turnover efficiency. At the same time, it adopts an ergonomic optimized design, equipped with a spacious driving space, optimizing the operation perspective and feel, reducing the fatigue of long-term operation and improving operation comfort.
The EL40M-PRO 4.0T electric counterweight forklift, with practicality as the core, takes into account performance, energy consumption and operation experience, and provides a stable, efficient and economical solution for heavy cargo handling. It is a reliable operation equipment for daily material handling in enterprises.
| BYD EL40M-Pro-2025 Electric Forklift Technical Parameter Table | ||
| parameter name | unit | parameter value |
| manufacturer | / | Home |
| Model name | / | EL40M-Pro-2025 |
| dynamic form | / | Electric |
| mode of operation | / | Seat |
| rated lifting capacity | kg | 4000 |
| load center distance | mm | 500 |
| Front overhang | mm | 475 |
| wheelbase | mm | 1770 |
| Gross weight (including battery) | kg | 5360 |
| Axle load (full load) | kg | 8158/1202 |
| Axle load (no load) | kg | 1955/3405 |
| Tire form | / | Solid tire |
| Front wheel size | mm | 250-15 |
| Rear wheel size | mm | 6.5-10 |
| Number of front/rear wheels, x = drive wheels | / | 2x/2 |
| front track | mm | 1030 |
| rear track | mm | 946 |
| Forward/Back Angle | degree | May 8 |
| gantry height | mm | 2135 |
| Free lifting height | mm | 130 |
| Standard gantry lifting height | mm | 3000 |
| Maximum height of gantry (off the ground) | mm | 4250 |
| Ceiling height | mm | 2245 |
| Seat height (off the ground) | mm | 1260 |
| Traction pin height | mm | 390 |
| full length | mm | 3860 |
| Full length (excluding forks) | mm | 2790 |
| total width | mm | 1270 |
| Fork size | mm | 50/122/1070 |
| ISO 2328 compliant fork racks, frames/forms A, B | / | 3A |
| Fork rack width | mm | 1100 |
| The lower limit of the gantry is the height from the ground | mm | 135 |
| The lower limit of the frame is the height from the ground | mm | 140 |
| Channel width with 1000x1200 horizontal tray | mm | 4205 |
| Channel width with 800x1200 vertical tray | mm | 4405 |
| lower turning radius | mm | 2530 |
| Inward turning radius | mm | 785 |
| Driving speed, load/no load | km/h | 16/18 |
| Lifting speed, load/no load | mm/s | 380/450 |
| Drop speed, load/no load | mm/s | 550/450 |
| Upper limit traction, S2 = 5min, load/no load | N | 15700/10500 |
| Upper limit climbing ability, S2 = 5min, load/no load | % | 15/15 |
| Brake form | / | hydraulic brake |
| Drive motor power, S2 = 60min | kw | 21.5 |
| Lifting motor power, S3 = 15% ED | kw | 24 |
| Battery capacity | V/Ah | 80/280 |
| Battery weight | kg | 290 |
| Battery size L/W/H | mm | 930/565/572 |
| VDI cycle type energy consumption | kw/h | / |
| Electronic control type | / | AC |
| Hydraulic system working pressure | bar | 180-195 |
| Noise at the driver | dB (A) | Not more than 80. |
| Traction connection | / | PIN |
