1.8-ton heavy-duty adaptation, narrow-channel high-efficiency pure electric handling
Product Overview

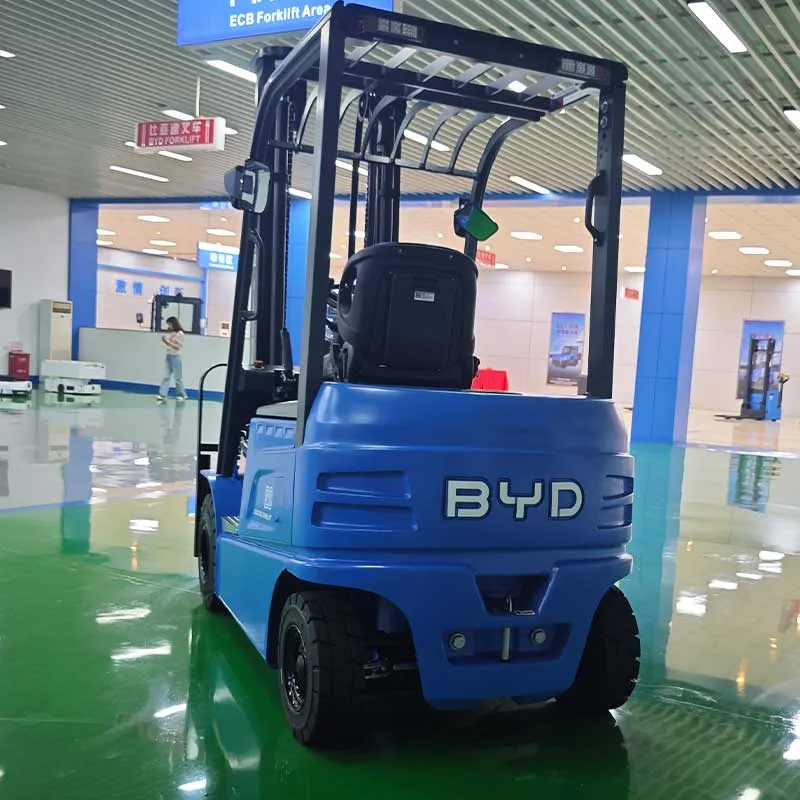

BYD EL18DT-PRO is a 1.8-ton three-pivot counterweight electric forklift built by BYD for heavy-duty narrow-lane operation scenarios. Relying on the accumulation of brand new energy technology and the use of a three-pivot body architecture, it enhances the carrying capacity while retaining compact maneuverability. The vehicle is equipped with a pure electric drive system and an AC electronic control solution, taking into account operational efficiency, driving comfort and long-term operation and maintenance economy. It is suitable for heavy-duty on-site handling and stacking needs in warehousing, manufacturing, trade and logistics and other industries. It is a reliable choice for the electrification of on-site handling equipment in enterprises.
II. Core product advantages
Heavy-duty pure electric power, stable operation output The vehicle is equipped with an AC electronic control system, matching double 5kW drive motors and 16kW lifting motors, the power output is smooth and linear, and can stably support the operation demand of 1.8 tons of rated lifting weight. Under full load conditions, the driving speed can reach 16km/h, and the full load lifting speed can reach 500mm/s, which can match the operation rhythm of conventional heavy-load transfer and stacking; equipped with 80V/270Ah large-capacity power battery, the battery life is stable, and it can support single-shift and above continuous operation; pure electric drive has no exhaust emissions, no oil fume pollution, and can be adapted to food, medicine, electronic manufacturing and other indoor operation scenarios that require environmental cleanliness.
Three-pivot structure design, flexible passage in narrow space Adopt three-pivot body structure, optimize passability for dense storage and narrow roadway scenarios, and achieve compact maneuvering performance under the 1.8-ton load capacity level. The minimum turning radius of the vehicle is only 1690mm, for 10001200mm horizontal standard pallets, the width of the working channel is only 3386mm, which can flexibly pass through dense shelf areas and narrow passages
To help enterprises make full use of storage space and improve site utilization.
Ergonomic layout, comfortable and safe driving adopts a ride-on operation layout, the seat height, control pedal and operation handle are all arranged ergonomically, suitable for operators to work continuously for a long time, effectively reducing work fatigue. The vehicle is equipped with a standard roof guard structure to provide basic safety protection for operators; the operating noise is ≤75dB (A), and the working environment is quiet and low-disturbance; with a responsive hydraulic braking system, the control is smooth and easy to use, and new operators can quickly adapt to the rhythm of work.
The operation and maintenance structure is simple, the long-term economic AC drive motor adopts a brushless design, the daily maintenance items are few, and the core components are durable; the working pressure of the hydraulic system is stable, and the components have a long service life. Compared with traditional internal combustion forklifts, there is no need to replace oil, three filters and other consumables regularly, and there is no fuel consumption, which can effectively reduce the operation and maintenance and energy consumption costs of the whole life cycle, and adapt to the long-term cost reduction of enterprises.
III. Quick overview of core parameters
| classification | parameter name | Unit/Specification | BYD EL18DT-PRO |
| overview | manufacturer | - | Home |
| Model name | - | EL18DT-PRO | |
| dynamic form | - | electric | |
| mode of operation | - | Car-mounted | |
| rated lifting capacity | t | 1.8 | |
| load center distance | mm | 500 | |
| Front overhang | mm | 370 | |
| wheelbase | mm | 1360 | |
| weight | Gross weight (including battery) | kg | 3190 |
| Front/rear axle load (full load) | kg | 4197 / 793 | |
| Front/rear axle load (no load) | kg | 1244 / 1946 | |
| tire | Tire form | - | SE |
| Front wheel size | - | 200/50-10 | |
| Rear wheel size | - | 140/55-9 | |
| Number of front/rear wheels (x = drive wheels) | - | 2x / 2 | |
| front track | mm | 930 | |
| rear track | mm | 220 | |
| size | Forward/Back Angle | 5-7 | |
| The lower limit height of the door frame (off the ground) | mm | 2020 | |
| Free lifting height | mm | 120 | |
| lifting height | mm | 3000 | |
| The maximum height of the gantry (off the ground) | mm | 3985 | |
| Ceiling height | mm | 2050 | |
| Seat height (off the ground) | mm | 985 | |
| Traction pin height | mm | 480 | |
| full length | mm | 3055 | |
| Full length (excluding forks) | mm | 2055 | |
| total width | mm | 1130 | |
| Fork size (thickness/width/length) | mm | 40 / 100 / 1070 | |
| Fork rack form (in accordance with ISO2328) | - | 2A | |
| Fork rack width | mm | 1040 | |
| The lower limit of the gantry is the height from the ground | mm | 95 | |
| The lower limit of the frame is the height from the ground | mm | 95 | |
| Channel width (10001200 horizontal tray) | mm | 3386 | |
| Channel width (8001200 vertical tray) | mm | 3510 | |
| lower turning radius | mm | 1690 | |
| Inward turning radius | mm | 0 | |
| performance | Driving speed (load/no load) | km/h | 16 / 16 |
| Lifting speed (load/no load) | mm/s | 500 / 550 | |
| Decline speed (load/no load) | mm/s | 530 / 500 | |
| Upper limit traction (S2 = 5min, load/no load) | N | 8960 / 6790 | |
| Upper climbing capacity (S2 = 5min, load/no load) | % | 18 / 20 | |
| Acceleration time (load/no load) | s | 4.5 / 4.0 | |
| Brake form | - | hydraulic brake | |
| drive | Drive motor power (S2 = 60min) | kW | 52 |
| Lifting motor power (S3 = 15% ED) | kW | 16 | |
| Battery capacity | V/Ah | 80 / 270 | |
| Battery weight | kg | 300 | |
| other | Electronic control type | - | AC |
| Hydraulic system working pressure | MPa | 16 | |
| Noise at the driver | dB (A) | ≤75 | |
| Traction connection | - | PIN |
IV. Applicable scenarios
BYD EL18DT-PRO three-pivot electric forklift can be adapted to multiple heavy-duty on-site handling scenarios:
Heavy cargo transshipment and high shelf stacking in e-commerce warehousing and logistics transit warehouses
Heavy material distribution in machinery manufacturing, hardware auto parts and other production workshops
Heavy cargo loading, unloading and transshipment operations in supermarket distribution centers and wholesale warehouses
Intensive storage operation environment with limited space and narrow roadways
