Overview of product foundation

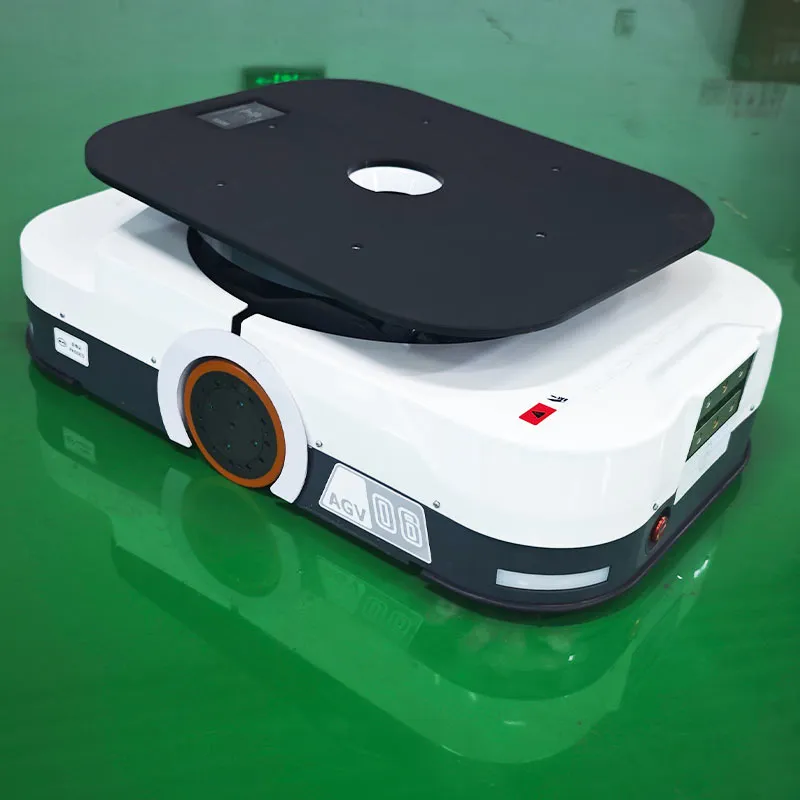

The AF25 latent jack-up AGV is produced and manufactured by BYD. It is a heavy-duty fully automatic latent handling robot with a rated load of 2.5 tons. It adopts pure electric drive and double rudder wheel walking structure. The steering mode is rich and flexible, and it can be adapted to the working conditions of the factory with multiple obstacles and complex routes. The equipment is equipped with a large-capacity lithium iron phosphate battery, which has the characteristics of stable heavy load and long-term battery life. It relies on the automatic guidance system to independently complete the lifting and transfer of heavy tooling and material racks, optimize the material transportation process of the complex workshop, and reduce the investment in manual heavy-duty handling.

Core hardware parameters

• Rated load: 2.5 tons


• Weight of the whole machine: 1000 kg


• Turning radius: 1051 mm


• Walking structure: double steering wheel


III. Standard matching configuration

Power battery: 24 V/210 Ah lithium iron phosphate battery

BYD is equipped with a large-capacity lithium iron phosphate power battery, which provides a stable and long-lasting power supply output and is suitable for long-term high-frequency heavy-duty material transfer. Lithium batteries are safe and stable, and can be adapted to dusty and complex indoor working conditions such as heavy industry, auto parts, and large warehouses.

Charging package: 24 V/200 A charging cabinet

High-power special charging equipment, matching the replenishment requirements of heavy-duty AGV batteries, shortening the downtime for charging, and contributing to the continuous and automated flow of heavy-duty materials in the factory.

360 multiple safety protection: contact + non-contact dual collision avoidance device

The equipment is equipped with a wraparound safety sensing mechanism, long-distance infrared warning, and a physical buffer anti-collision structure. When driving in a complex multi-obstacle workshop, it can identify personnel, tooling, and shelf obstacles from multiple angles, reducing the collision loss of heavy-duty goods.

Sound and light prompt components: warning light, voice announcer

Equipment jacking, steering, driving, failure, charging status synchronous lighting and voice dual reminders, large-scale workshop staff with complex working conditions can quickly identify equipment operation dynamics and reduce human-machine interaction safety hazards.

IV. Product application advantages

Flexible steering of dual steering wheels, suitable for complex and changeable factory routes

The dual steering wheel walking design supports a variety of steering modes, with a 1051 mm turning radius, allowing flexible travel in complex workshop passages with multiple curves and obstacles, suitable for old heavy industry plant renovation projects.

2.5 tons of stable heavy load to meet the needs of heavy tooling transshipment

Rated capacity of 2.5 tons, can smoothly lift heavy material box, metal tooling, large work in progress, suitable for manufacturing large quantities of heavy material circulation transportation.

Long-term battery life of large-capacity lithium batteries, reducing frequent replenishment

The 24 V/210 Ah large-capacity battery has stable battery life, eliminating the need for multiple downtime and charging under long-term multi-shift heavy-duty operations, maintaining the continuity of logistics operations.

Latent jacking integrated structure, suitable for a variety of heavy vehicles

It can dive into the bottom of heavy-duty tooling to automatically lift and lift goods, eliminating the need for manual lifting and hanging, and simplifying the operation steps of loading and unloading heavy materials.

Fully automated guided operations reduce heavy-duty handling labor costs

Equipped with a mature automatic guidance control system, it can independently complete multi-station, long-distance heavy-duty material transfer, replace manual forklifts and manual heavy-duty carts, and optimize the cost of Talent Acquisition Operations in the factory.

Multiple safety protections to reduce the risk of heavy-duty operations

360 dual anti-collision with sound and light warning, active risk avoidance during heavy-duty driving, reducing damage to heavy goods and tooling, and contributing to the stable operation of complex production lines.

Applicable scenarios

It is suitable for heavy-duty auto parts processing plants, large-scale machinery parts workshops, metal products factories, large-scale finished product three-dimensional warehousing, heavy industry assembly lines, and other indoor logistics scenarios with complex working conditions and the need for heavy-duty tooling material recycling.
